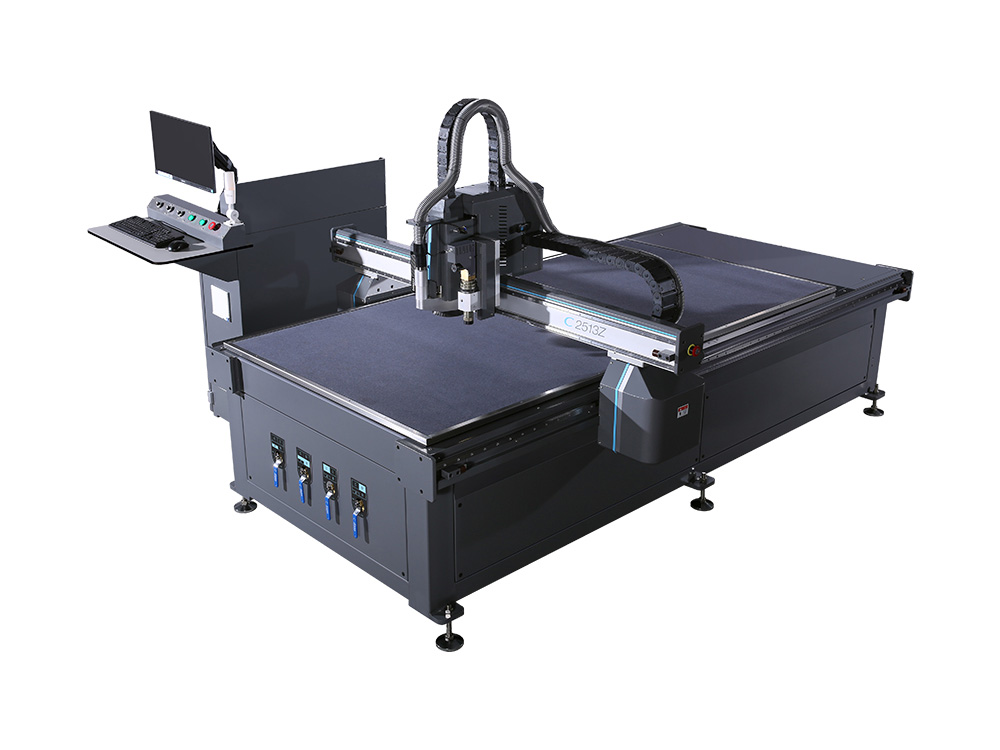

T2513Z
MULTI-FUNCTIONAL CNC ROUTER
多功能視覺定位雕刻/裁切機
T-2513Z是MNT最新研發的集雕刻、裁切于一體的多功能視覺定位雕刻/裁切智能數控裝備。該設備采用直列式鋼結構工業床身結構和全鋁龍門設計，床體經振動時效技術處理后，加工表面及安裝孔位全部由高精度龍門銑床一次加工成型。設備配備了高速水冷模具主軸、高頻電振動刀、CCD視覺定位系統和大吸力吸塵系統，采用高性能運動控制系統和MNT自主研發的專業雕刻/裁切CAM軟件操作，具有操作簡單方便、運行速度快、精度高、吸塵效果好的特點，廣泛應用于廣告標識雕刻及噴印裁切等行業的KT板、PVC板、亞克力、鋁、銅、鋁塑板、塑料、碳纖維復合材料、燈片、軟膜、不干膠等材料的切割。
MNT CNC router model T2513Z is the latest developed engraving and cutting intelligent equipment, which integrates carving, cutting and multi-functional vision positioning . The equipment is designed with the structure of industrial steel machine bed and the aluminum gantry. The machine bed is treated by vibration aging technology, the processing surface and the installation holes of which are all processed by the precise gantry milling machine by once. The router is equipped with high-speed water-cooled spindle, ultra-frequency electric oscillating knife, CCD visual positioning system and vacuum cleaning system. With international high performance motion control system and MNT independent developed and professional CAM software for carving and cutting, the machine has advantages of simple and convenient operating, high speed, high precision and perfect effect of dust collection. It is widely applied in advertising and sign industry, printing and cutting industry and other industries. Its application materials is KT board, PVC board, acrylic sheet, MDF, aluminum, copper, aluminum composite panel, plastic, carbon fiber composite materials,PC sheet, soft film, vinyl, magnetic sticker and so on.
Main technical parameters
設備主要技術參數
|
Item
|
Parameter
|
|
Work area / 工作尺寸:
|
1300x2500mm
|
Repeat position accuracy/:
|
±0.05
|
|
Equipment power / 設備電器功率:
|
3.5kw
|
Moving axis qty. /運動控制軸數量:
|
5Axis
|
|
Total Spindle Power /
主軸功率:
|
2.2Kw(標配)
3.2/4.5Kw（
可選）
|
Servo motor qty. / 伺服電機數量:
|
5pcs
|
|
Vibration frequency of EOT / 高頻電振動刀振頻:
|
14000rpm
|
Capacity / 電壓:
|
AC220V 50Hz
|
|
Vacuum pump power / 真空泵功率:
|
5.5Kw(標配)
7.5 kw
（可選）
|
Overall dimension / 設備外形尺寸:
|
2300x3200x1750mm
|
|
Max processing speed / 空程最高運行速度
|
72m/min.
|
Weight/ 設備質量
|
1000Kg
|

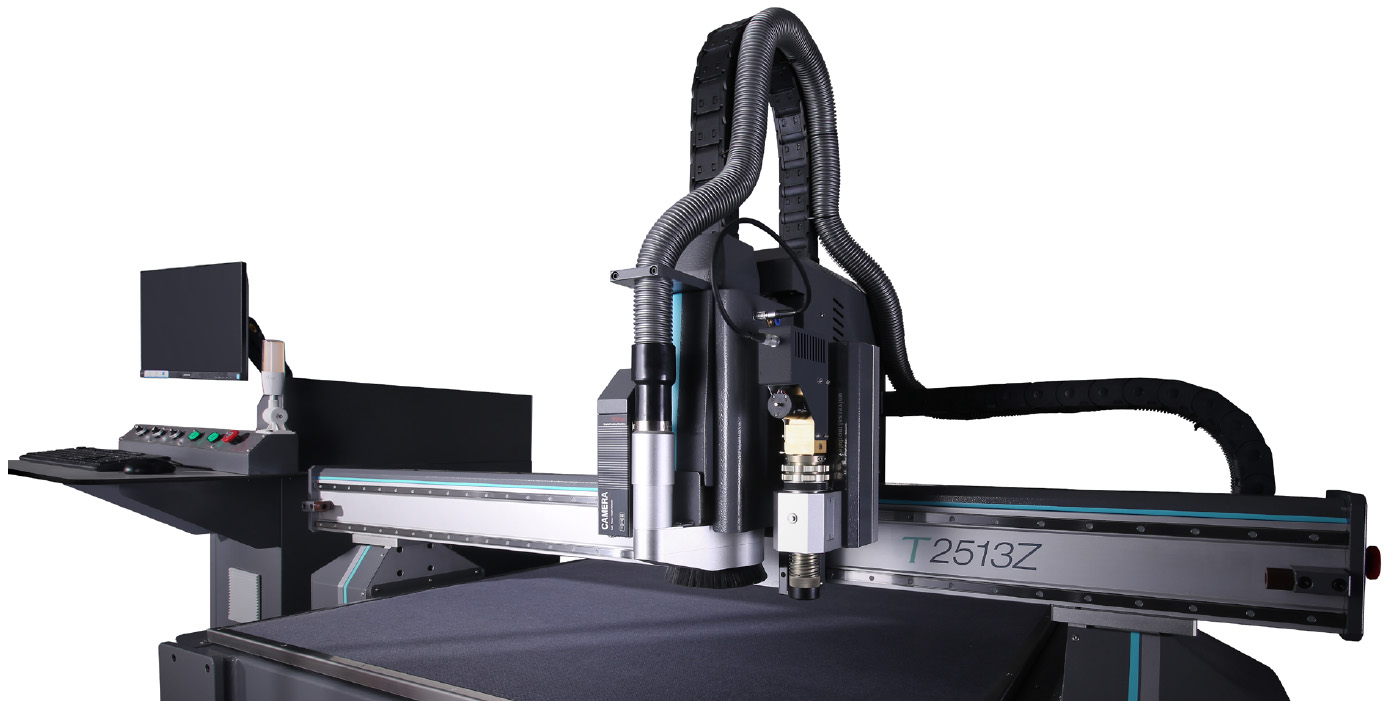

MNT high speed cutting system
高速切割系統

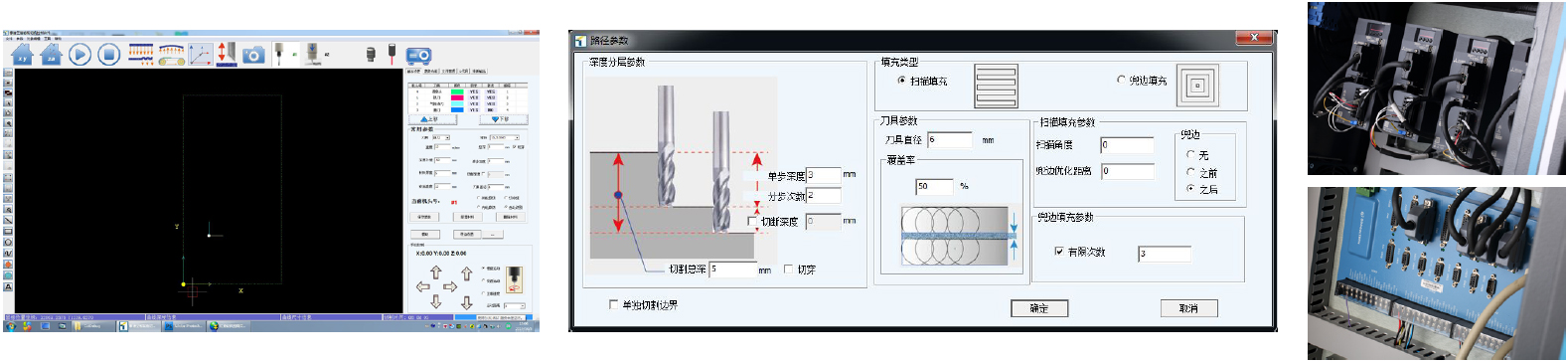

T-2513Z is a machine integrating visual positioning, carving and cutting, which is with new mechanical design, precision processing and strict assembly, completely representing different from the traditional. Moving parts adopts screw, guide rail, grinding grade rack and pinion and ac servo motor of all imported. Control system adopts high speed motion control system and MNT independent developed high speed engraving software, with the help of which, there is no need to edit by third-party software before cutting. Built-in multiple cutting methods, it has features of quick speed, good stability and perfect performance. Its free running speed can reach 72 m/Min and the feeding speed is 8 ~ 15 m/Min. It not only provides users with satisfying experience, but also greatly improves the processing efficienc
T-2513Z是以全新的機械設計、精密的加工以及嚴密的裝配所呈現出來的、完全有別于傳統的視覺定位雕刻、裁切一體機。設備運動部分全部采用進口絲杠、導軌、研磨級齒輪齒條、進口交流伺服電機，控制系統采用高速運動控制系統和MNT自主研發的高速雕刻操作軟件，切割前無需第三方軟件編輯刀路，內置多種切割方式，設備具有運行速度快、穩定性好、切割光潔的特點，空程速度可達72m/Min.，加工進給速度8~15m/Min.，為您提供完全不一樣的工作體驗，大大提高了加工效率。

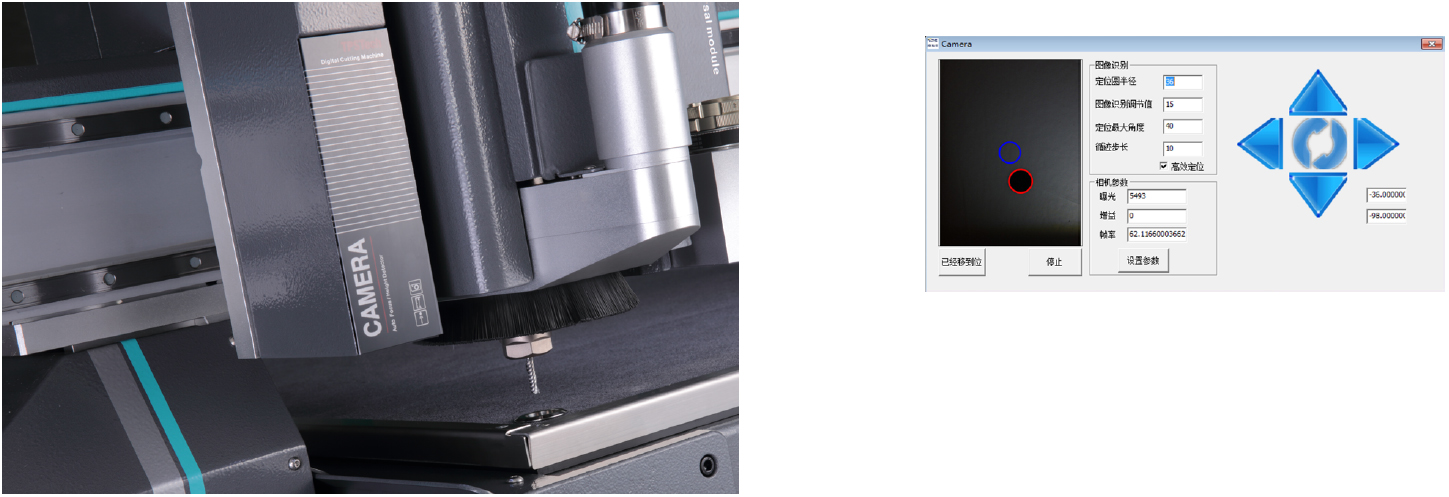

Small Vision Positioning System
小視覺定位功能
Small vision positioning system can locate and cut accurately by shooting the registering marks on workpieces with the hd CCD camera. It can achieve searching the registering marks fast, positioning precisely and controllable repeated positioning accuracy within 0.1mm, so as to meet the requirements of users for high-precision nest cutting.
小視覺定位系統通過高清CCD攝像頭拍攝工件上的MARK點來精準定位切割，搜尋定位點速度快、定位精準、重復定位精度可控范圍在0.1mm以內，滿足用戶高精度套切要求。

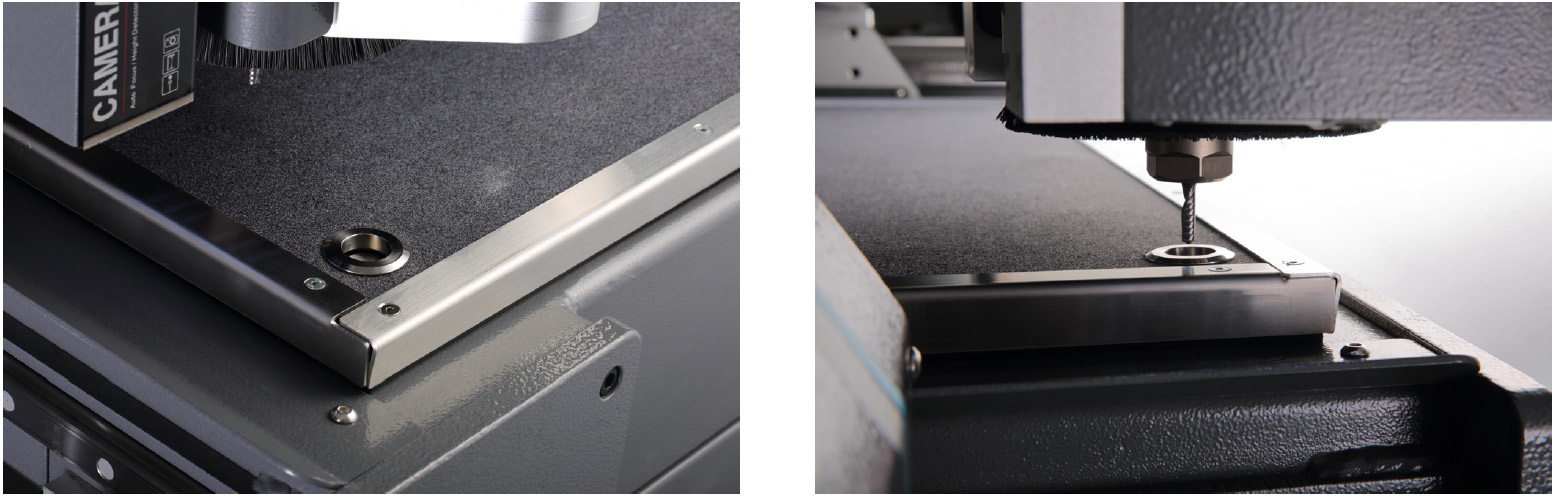

Automatic Spindle Calibration System
主軸自動對刀系統
It adopts contact tool calibration device and tool calibration method with unique tool calibration system of TPS. Users should set material thickness and then directly operate the machine carving milling cutting without manual tool calibration , which has been completed automatically by software. It is safe and fast.
采用接觸式對刀儀對刀方式配合TPS獨有的對刀系統，用戶在設置材料厚度后，在軟件中完成自動對刀操作后，就可以直接進行雕銑切割，無需人工對刀，安全快捷。
Srong adsorption for dust system
強力吸塵系統
Due to unique design of vacuum cover and suction pipe, chips can be removed easily only by an ordinary vacuum cleaner with small power, which saves both space and energy.
獨有的吸塵罩及吸塵管路設計，僅使用普通小功率吸塵器，就可以輕松地將切削屑沫吸干凈，保持臺面清潔，不僅占地面積小，而且更加節能。

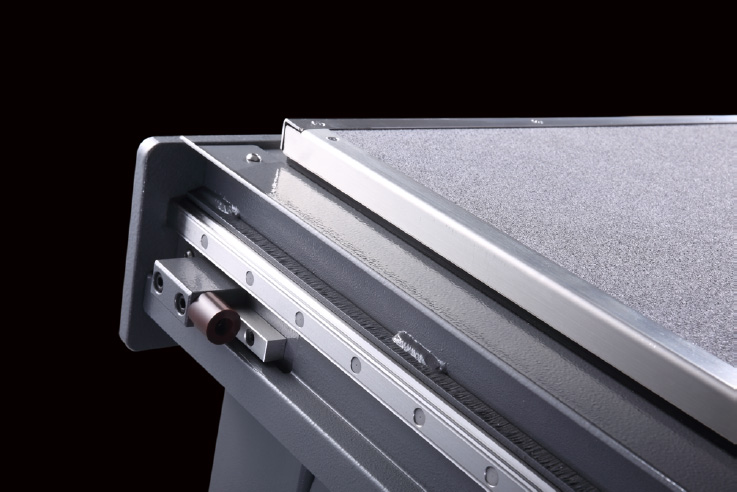

Design of Strong Vacuum Adsorption Platform
強力真空吸附工作臺面
Designed with brand new adsorption tabletop piping system, partition setting and honeycomb tabletop covered with imported felt, it has advantages of perfect flatness, good permeability and strong suction, which effectively prevents workpieces from moving in process of cutting.
全新的吸附臺面管路和分區設置，使用表面覆蓋進口毛氈的蜂巢式臺面，臺面平整度好、透風性好、吸力強勁，有效地防止工件在切割過程中的位移現象。

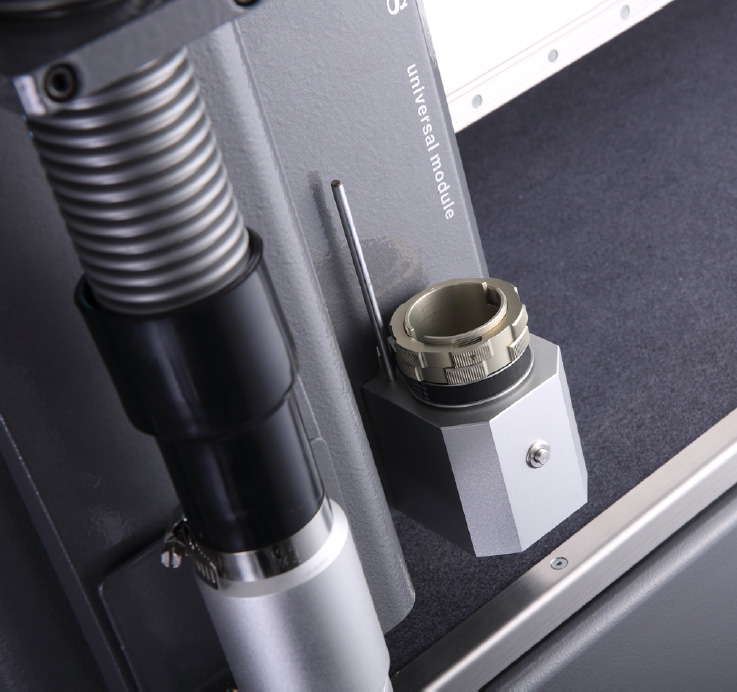

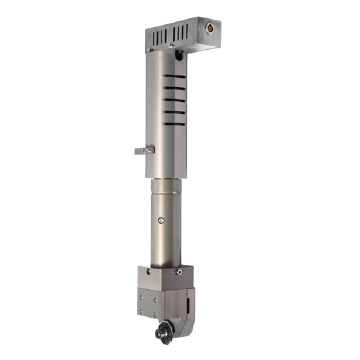

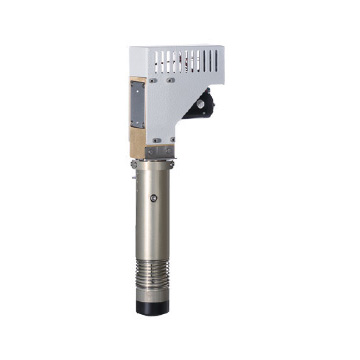

A wide variety of optional tool units as following
各種可選的切割工具單元
|
|
|
|

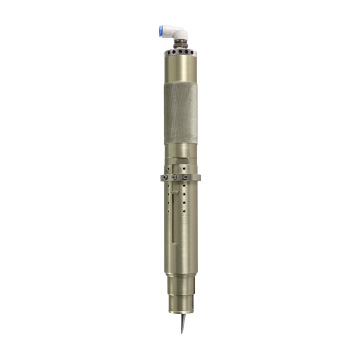

Ultra-frequency electric oscillating tool
高頻電動振動刀
|
Ultra-frequency pneumatic oscillating tool
高頻氣動振動刀
|
Wheel cut tool
輪切刀工具
|
|
|
|
|
|
Non- oscillating tool
拖刀工具
|
Kiss-cut Tool
半切刀工具
|
Multi-angle V-Cut tool
多角度斜切刀工具
|
Creasing tool
壓痕刀工具
|
